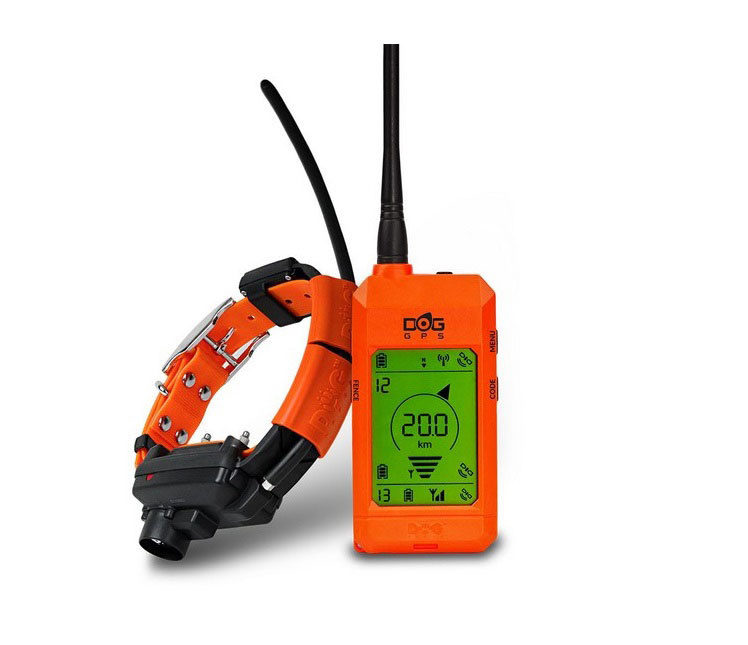

Tracking system with beeper collar and training module DOG GPS X30TB

DOG GPS X30TB is a device for tracking (locating) your dogs for up to 20 km.

It consists of the transmitter located on the dog’s collar and the receiver (handset) on which the dog handler tracks the distance and direction towards the dog’s location.

The transmitter gets its position from the GPS satellites, which send the position data to the dog handler’s receiver via the radio frequency (RF) signal.

The DOG GPS X30TB transmitters include beeper locator by which a dog may be identified up to a distance of 300 m and training module, which enables the stimulation pulse to be sent from the receiver for up to 20 km.

The receiver may be connected to a mobile phone or tablet (using the Android operating system) via wireless communication and all paired devices may be viewed using the Dogtrace GPS application on the map.

Product Details Tracking system with beeper collar and training module DOG GPS X30TB
Device features:

    Range between the transmitter and the receiver is up to 20 km in direct visibility
    (depending on terrain, vegetation and other factors)
    Tracking up to 13 dogs, hunters or waypoints
    Highly sensitive GPS in the receiver and transmitter
    Clearly legible receiver display – in direct sunlight and in the dark
    Waterproof receiver and transmitter
    Long battery life
    2 acoustic signal modes – training / localization
    BEEPER (on collar) – beeper locator - loud location sound audible up to 300 m
    15 stimulation pulse levels
    Light mode for identifying dog in the dark
    Switching channels for communication between the transmitter and receiver
    Compass feature
    FENCE (circular fence) – indicates that the set distance from the dog handler has been exceeded
    BEEPER  (in handset)– detection of dog in motion/standing still
    Waypoint – option to store 13 GPS receiver coordinates – navigation to these points
    CAR mode – mode for using the receiver (handset) in the vehicle
    Receiver is compatible with all DOG GPS transmitters (collars). Some functions on X20 are limited
    Receiver: 119 x 62 x 15 mm / 192 g
    Transmitter: 77 x 45 x 34 mm / 166 g
    Battery: Li-Pol 1850 mAh – recharging

Dogtrace GPS application:

    View all devices (dogs, other dog handlers, waypoints) on the map
    On-line and off-line maps
    Compass
    Recording routes of all devices
    Indication of dog barking with recording to the route on the map
    Acoustic signal  – training/location
    Light function
    Stimulation function
    Measurement of distance and area
    Saving waypoints on the map
    Geo-fence (fence in geographic coordinates)
    Circular fence
    Statistics

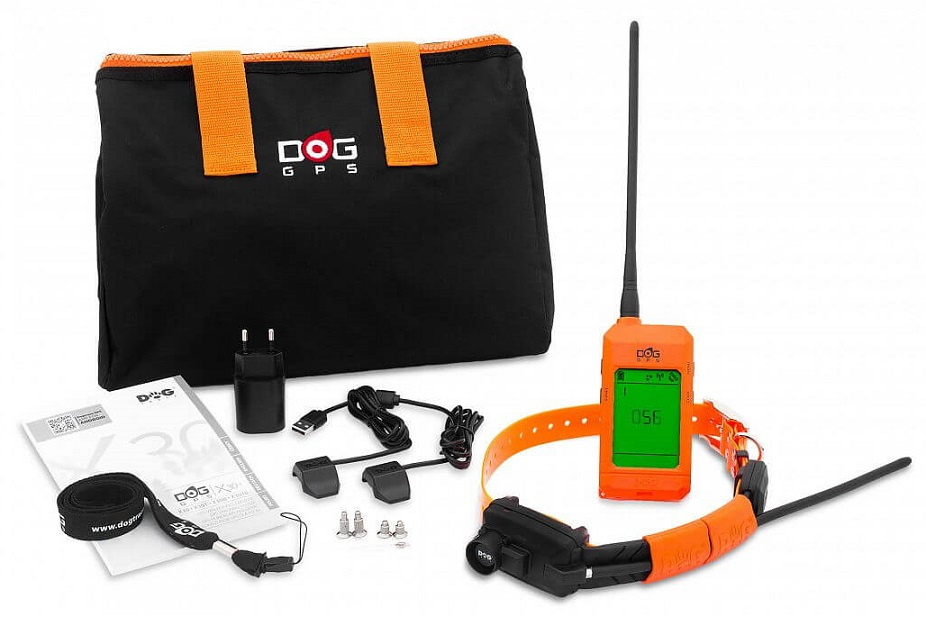

Package contents:

    Receiver including Li-Pol 1850 mAh battery
    Clip for hanging the receiver on a belt and two screws
    Transmitter with beeper and training module including Li-Pol 1850 mAh and the belt
    Set of contact points, 2 pcs 10 mm, 2 pcs 17 mm
    Dual power adapter, two USB cables with GPS charging clip
    Test discharge lamp
    Cord for handing the receiver
    Operating Manual and Certificate of Warranty
    Equipment bag
